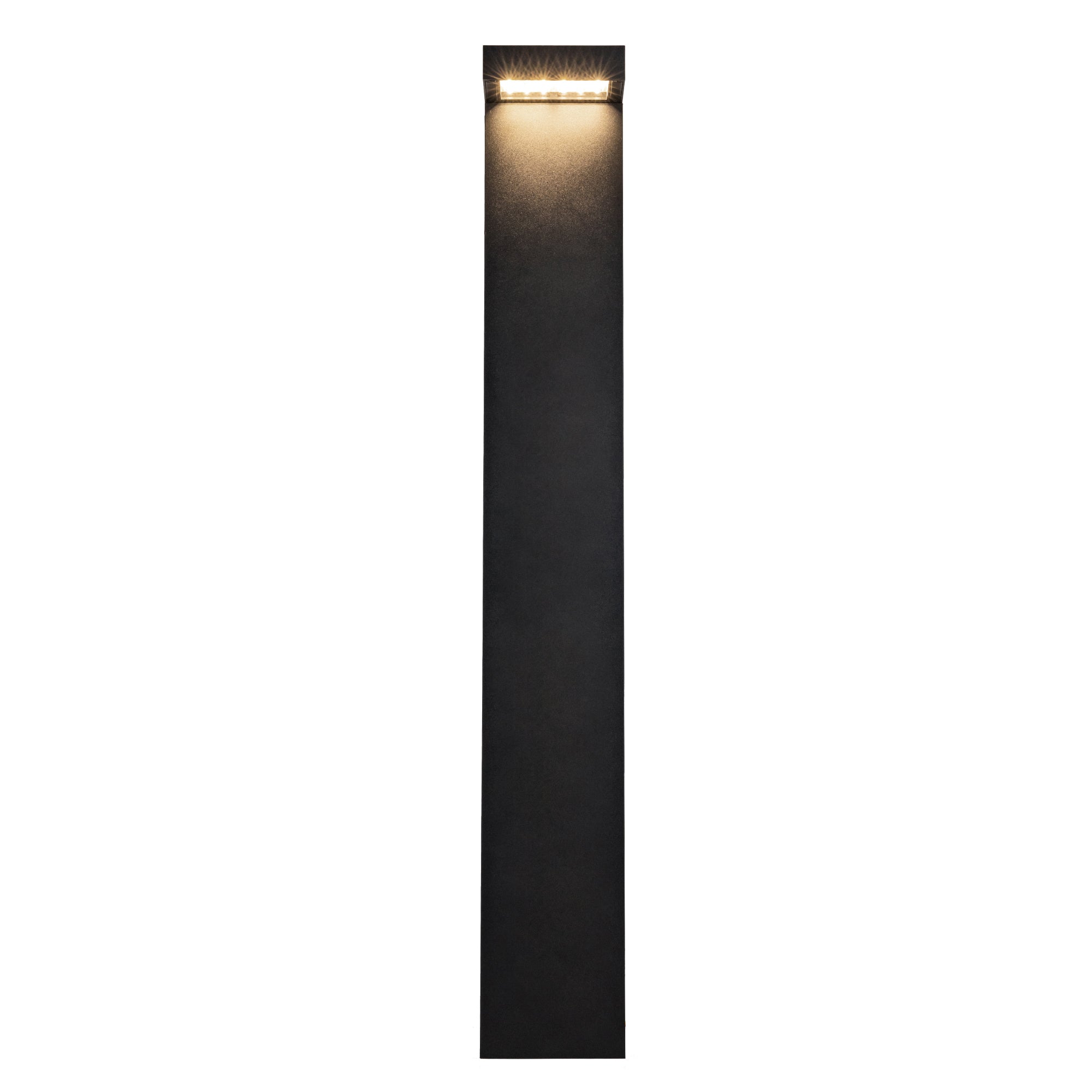

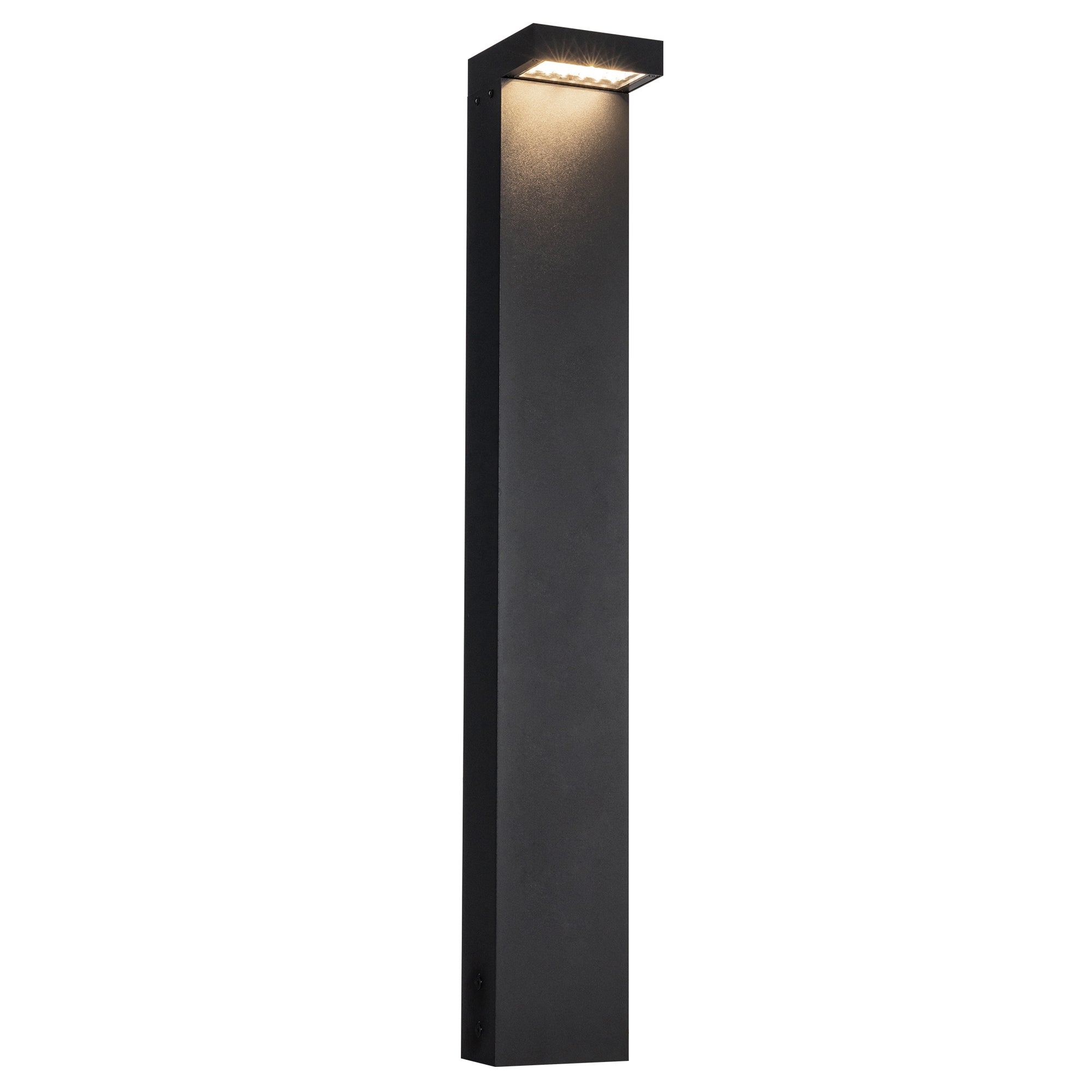

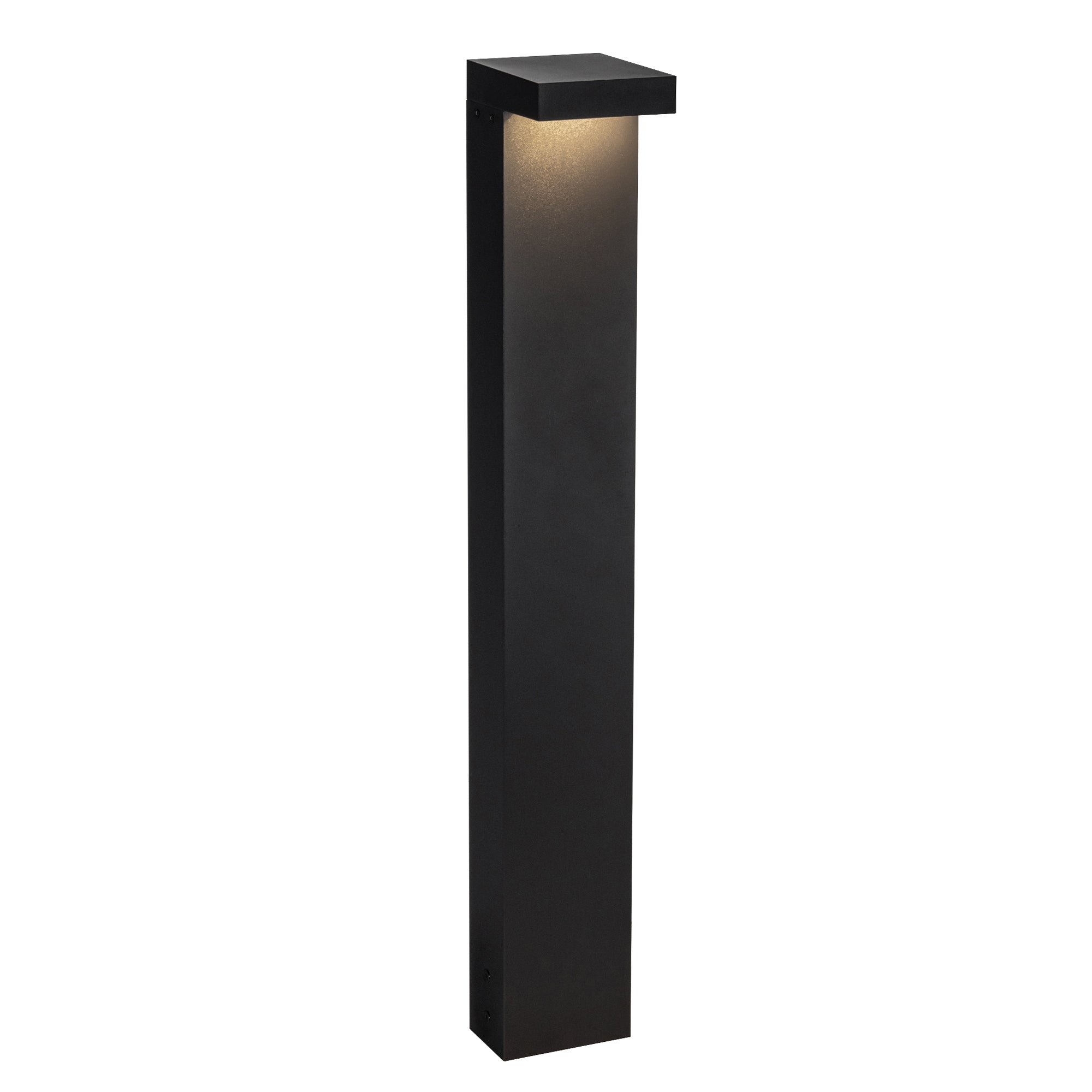

Evans 36-in Heavy Cast Aluminum Exterior Bollard Light

At 36-1/8", the Evans 36-in Heavy Cast Aluminum Exterior Bollard Light is the tall option, which does two things: it spreads light over a wider footprint so you need fewer fixtures along a run, and it reads as a marker in its own right at the end of a drive or beside a gate. Output is 2040 lumens at 24W. This one uses a Type II distribution rather than a symmetric one, which throws the light forward and back along a path instead of in a circle. On a walkway that means less light wasted into planting and fewer fixtures needed to cover the same run.

Black Finish and Build

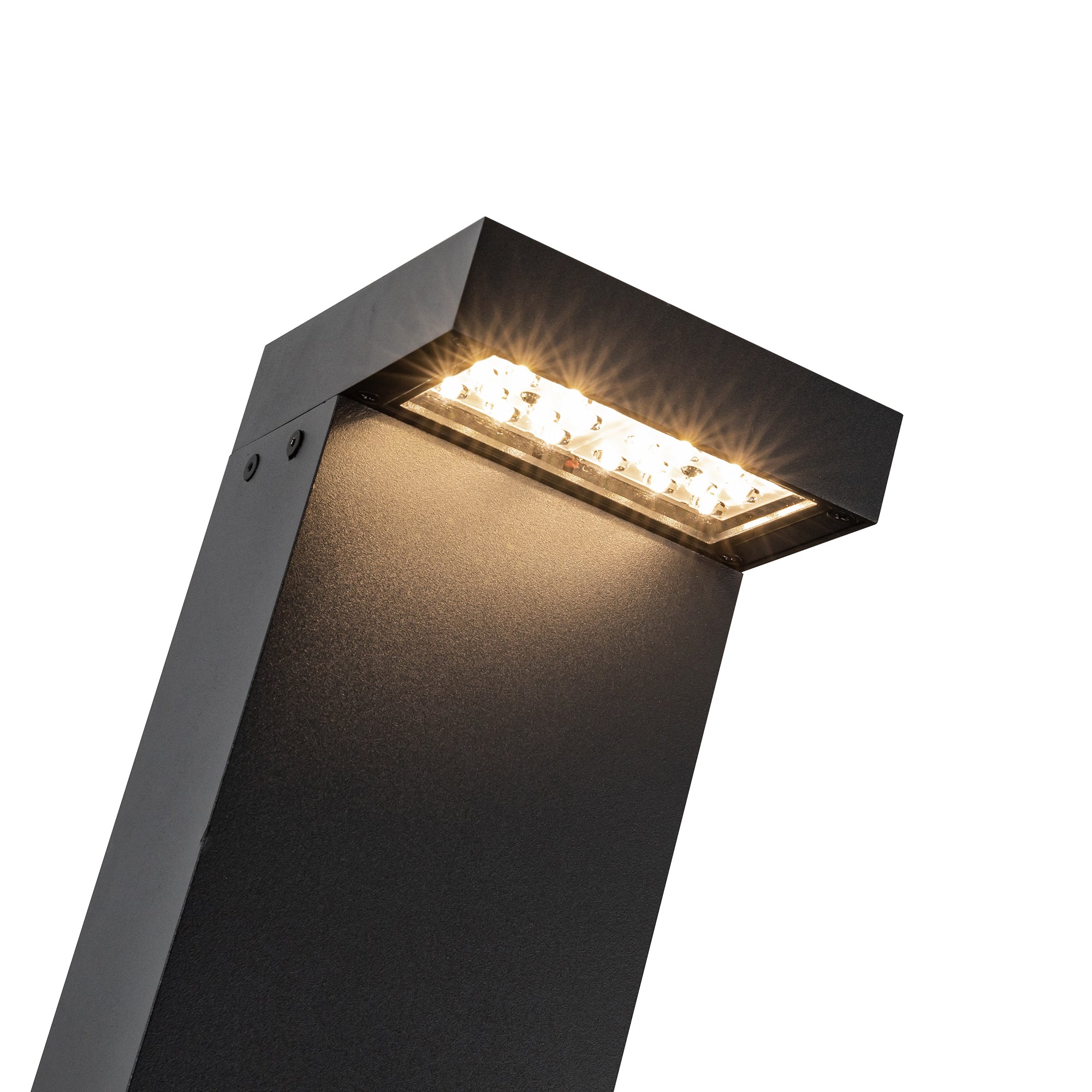

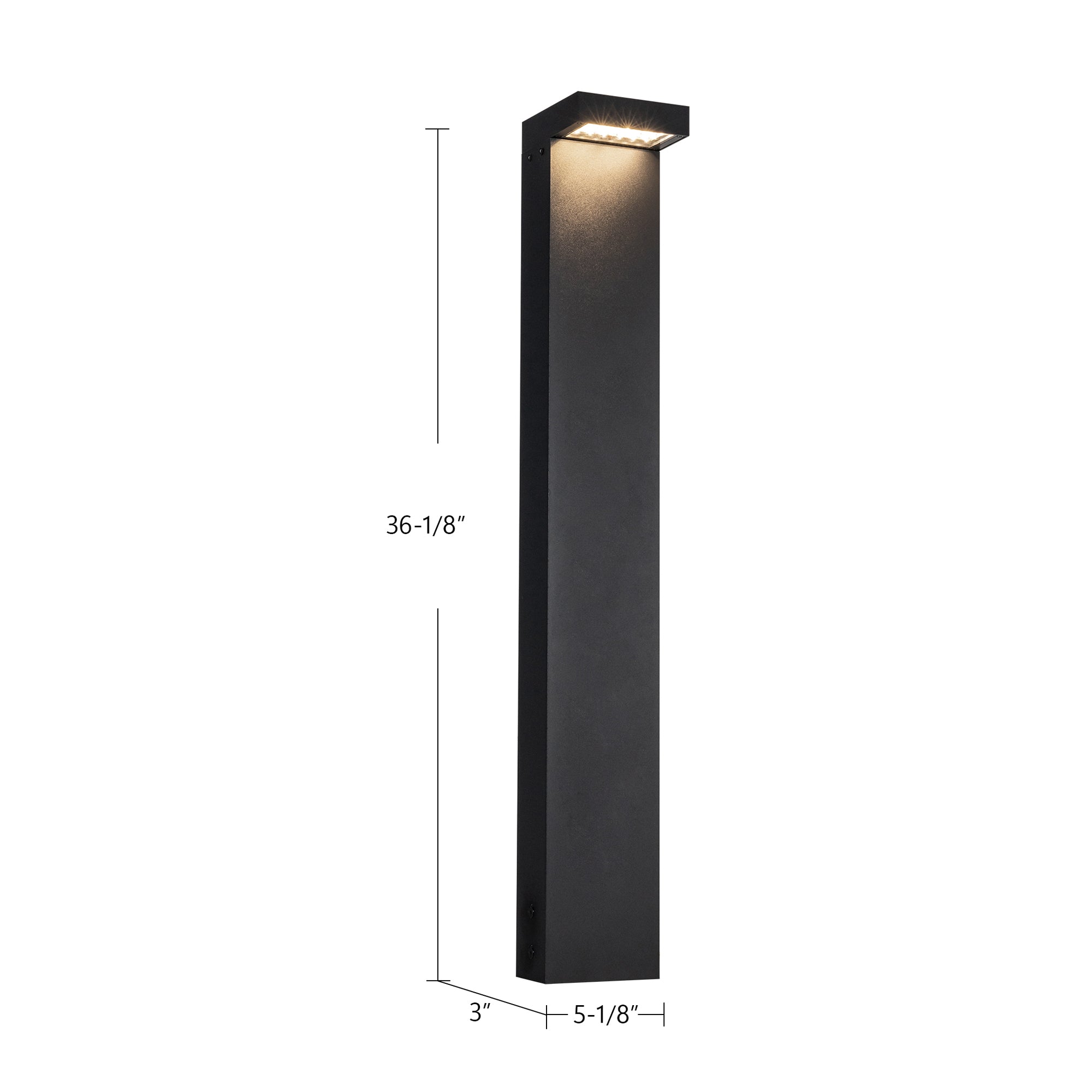

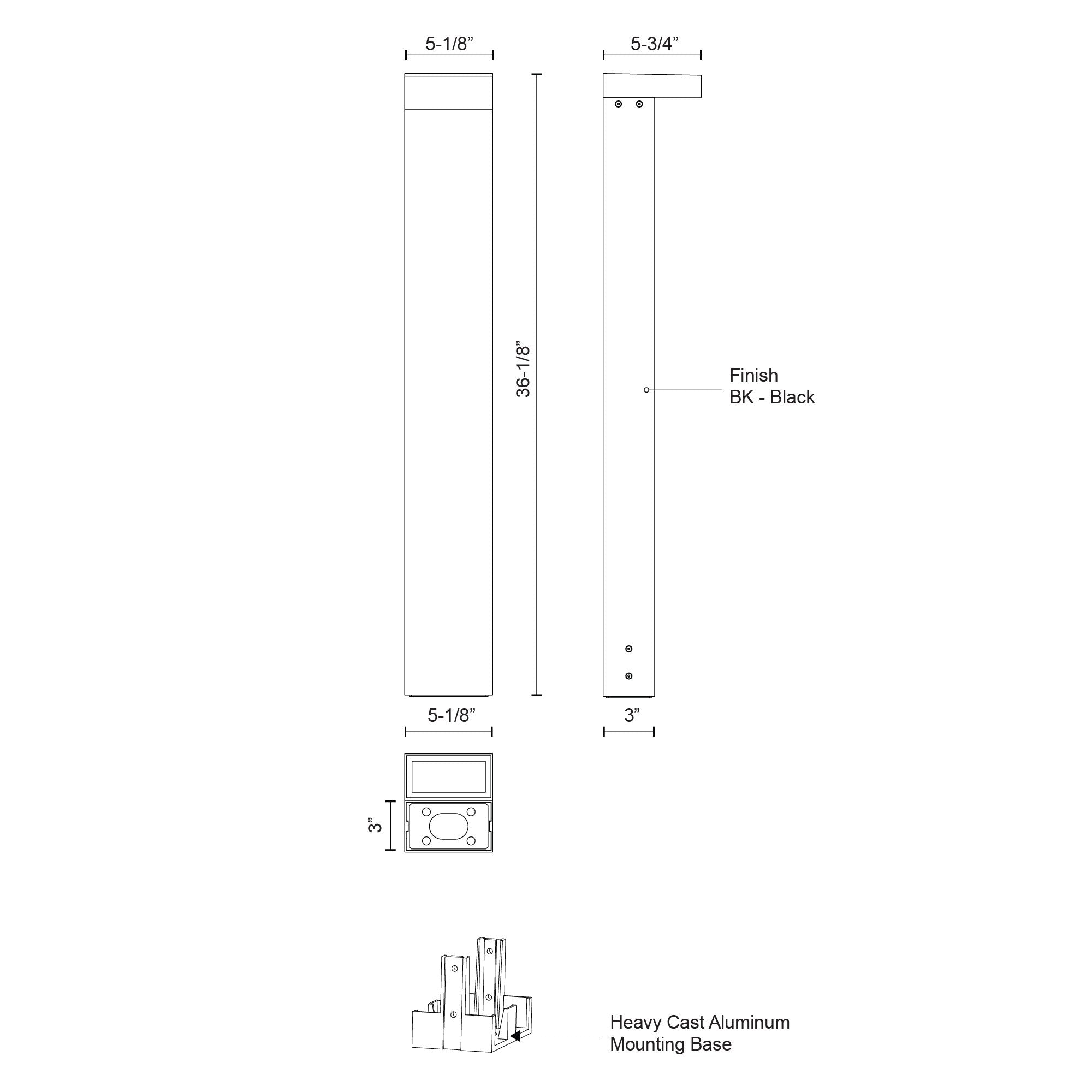

Heavy Cast Aluminum makes up the body, in Black. Overall it is L5-1/8" x W5-3/4" x H36-1/8". The wet, IP65 rating is what allows it to sit unprotected in a bed or beside a drive. The lens panel is clear glass. Heavy cast aluminum is a thicker section than extruded, so it takes a knock from a mower or a car door better than a folded housing would.

Specifications and Design Details

The specs that matter before you buy: 2040 lumens at 24W; 3000K color temperature; 90 CRI; an LED with DC Driver rated for 50,000 hours; dims 100% to 10% on TRIAC/ELV controls; 120-277V universal input; wet, IP65 location rated; light aimed as a Type II distribution; overall size L5-1/8" x W5-3/4" x H36-1/8"; ETL listed. The dimmer is sold separately, so check your existing control before you order. The universal 120-277V input is worth noting on a residential job too, because it means the same SKU works if the circuit turns out not to be 120V.

Where This Bollard Works

A few places this one earns its spot. Around a parking area or a service path, where a wet, IP65 rated housing has to survive snow clearing and irrigation. Along a walkway or a garden path, spaced so the pools of light overlap rather than leaving dark gaps between them. Down a driveway or beside a turning circle, where the fixture marks the edge for a car as much as for a person. Bollards are usually mounted to a concrete base with an anchor kit, so plan the conduit run before the concrete goes in rather than after.

Highlights

  • 2040 lumens from 24W, no bulbs to buy
  • 90 CRI for accurate color on planting, brick, and paving
  • Type II distribution, throws along a path rather than in a circle
  • 3000K output
  • Dims 100% to 10% on TRIAC/ELV controls
  • Heavy Cast Aluminum housing in Black
  • Wet, IP65 location rated, IP65 sealed against driven rain
  • 120-277V universal input, works on 120V or 277V circuits
  • 36-1/8" tall, L5-1/8" x W5-3/4" x H36-1/8"
  • Heavy cast aluminum construction
  • Integrated LED rated for 50,000 hours
  • ETL listed for wet locations
